ENTEPRISE LAYOUT is software for creating a wire harness drawing based on the data of the wire harness designed with ENERPRISE HARNESS.

・Capable of Creating a Wire Harness Drawing based on the 3D Data of the Wire Harness designed with ENTERPRISE HARNESS

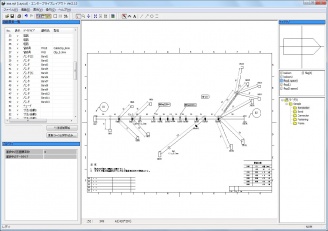

ENTERPRISE LAYOUT enables automatic transformation of the 3D data of the wire harness designed with ENTERPRISE HARNESS into a 2D wire harness drawing.

・Capable of Utilizing the Selected Data of the Drawing

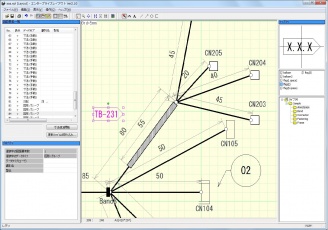

ENTERPRISE LAYOUT allows for reflecting the modified portion only of the wire harness on the wire harness drawing when 3D wire harness design has been modified.

・Capable of Reflecting the Fitting Direction and Bent State
of the Designed Wire Harness on the Drawing
ENTERPRISE LAYOUT allows for creating a wire harness drawing taking the fitting direction and bent state of the designed wire harness into account, because a wire harness drawing is developed in accordance with what is seen on the 3D models.
