ENTERPRISE HARNESS Electrical
Function of Product
Quick and Accurate Electrical CAD Linkage
======================
"Electrical" makes it possible to enter accurate wiring information from Electrical CAD and enables quick and accurate cable design. FromTo information containing wiring results can be used for the production of various harnesses.

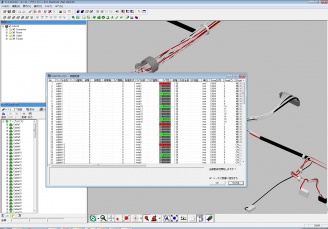

・Importing List of Connectors to be Placed
By importing FromTo information exported from electrical CAD, it is possible to accurately import the connector information required for wiring. Based on electrical CAD information, the required connectors can be placed and human
errors can be reduced.

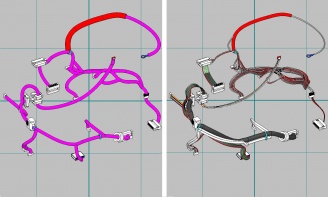

・Automatic Wiring of Cables
It is possible to place cables according to FromTo wiring information. This greatly reduces the effort required to design each cable separately.
・Exporting Length List
Harness wiring results designed in the "Electrical" package can be exported as
FromTo information which includes length information. The exported FromTo information can be used as drawing information to be supplied to harness vendors as well as for calculating weight and cost of harnesses.
Purpose of use
・Electrical CAD Linkage
The "Electrical" package makes it possible to enter accurate wiring information from Electrical CAD and enables quick and accurate cable design. FromTo information containing wiring results can be used for the production of various harnesses.
Movement environment
| OS | Microsoft® Windows 10 English 64bit Microsoft® Windows 11 English 64bit |
|---|---|
| CPU | Intel Core i5 or higher, Intel Core i5 equivalent or higher |
| Memory | 4 GB or more |
| Hard Disk | more than 1GB |
| Display Resolution | 1920×1080 or more |
| License Type | ‣Network License ‣Nodelocked License |
| SOLIDWORKS Edition | CPU: Clock needs 3.3Ghz or more. Memory: 16GB or more. Supported SOLIDWORKS: See below ‣SOLIDWORKS2020 SP5.0 ‣SOLIDWORKS2021 SP5.0 ‣SOLIDWORKS2022 SP5.0 ‣SOLIDWORKS2023 SP5.0 ‣SOLIDWORKS2024 SP3.1 |
